Stacking examples¶
Compose layers with |. Vacuum and substrate bookend the film stack; each
operand is a homogeneous slab, Mix(...)(thick, rough), or DepthProfile.
Short compositional stacks live at the end of the feature pages (Diffusion, Phase transitions, Polynomials, Callables). This page holds richer multi-form showcases (free-optical osc stack and kitchen-sink).
Shared preamble:
from refloxide.model import MaterialSLD, FreeUniTensor, Mix, ReflectModel
from refloxide.profiles import (
Diffusion,
SecondOrderTransition,
DepthProfile,
Spline,
Polynomial,
CallableField,
CallableDepthProfile,
)
vac = MaterialSLD("", 0, name="vacuum")(0, 0)
si = MaterialSLD("Si", 2.33, name="si")(0, 3.0)
mat = FreeUniTensor(energies=[284.4], name="film")
mat_a = FreeUniTensor(energies=[284.4], name="a")
mat_b = FreeUniTensor(energies=[284.4], name="b")
mat_c = FreeUniTensor(energies=[284.4], name="c")
Free-optical oscillatory stack¶

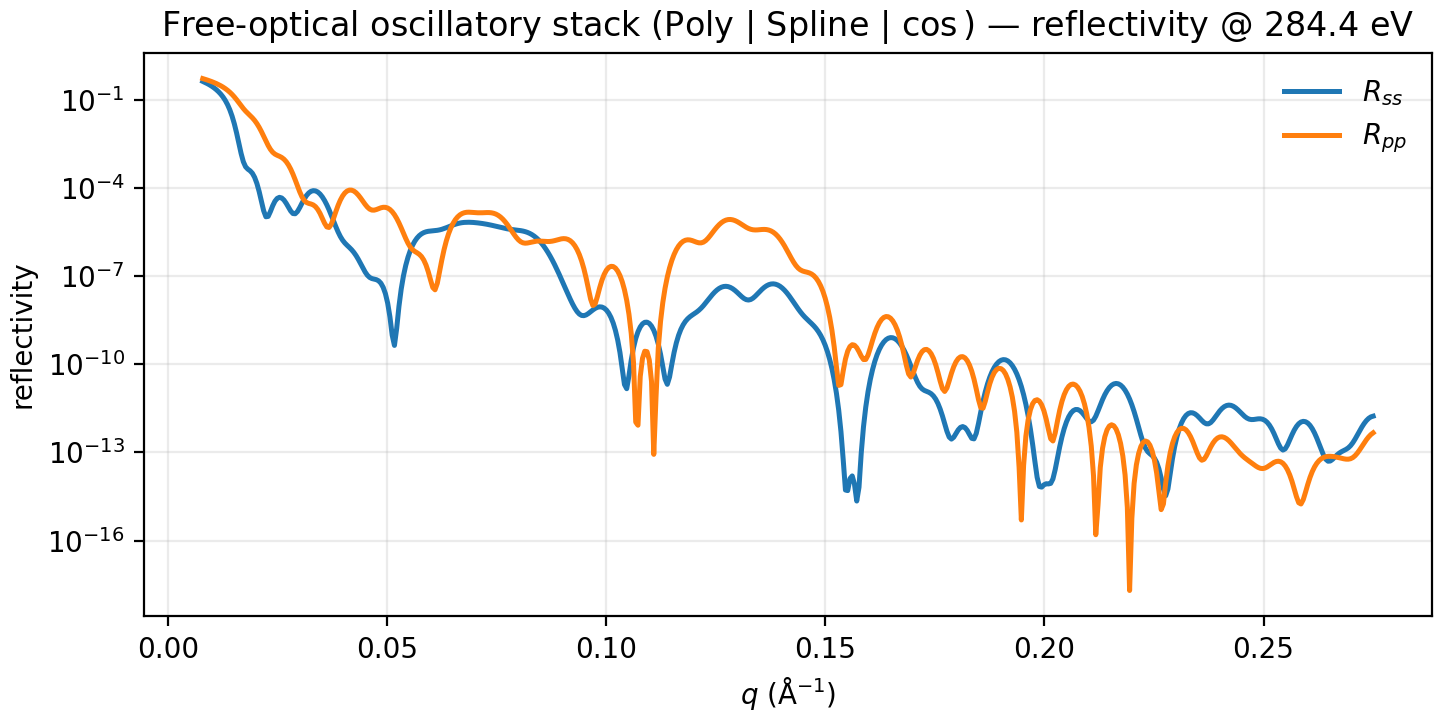

Builder: case_free_optical_osc_stack
Extreme free-optical Polynomial | extreme free-optical Spline | \(\cos\)-driven
CallableField (mean \(\delta\), birefringence, and phase-shifted dichroism).

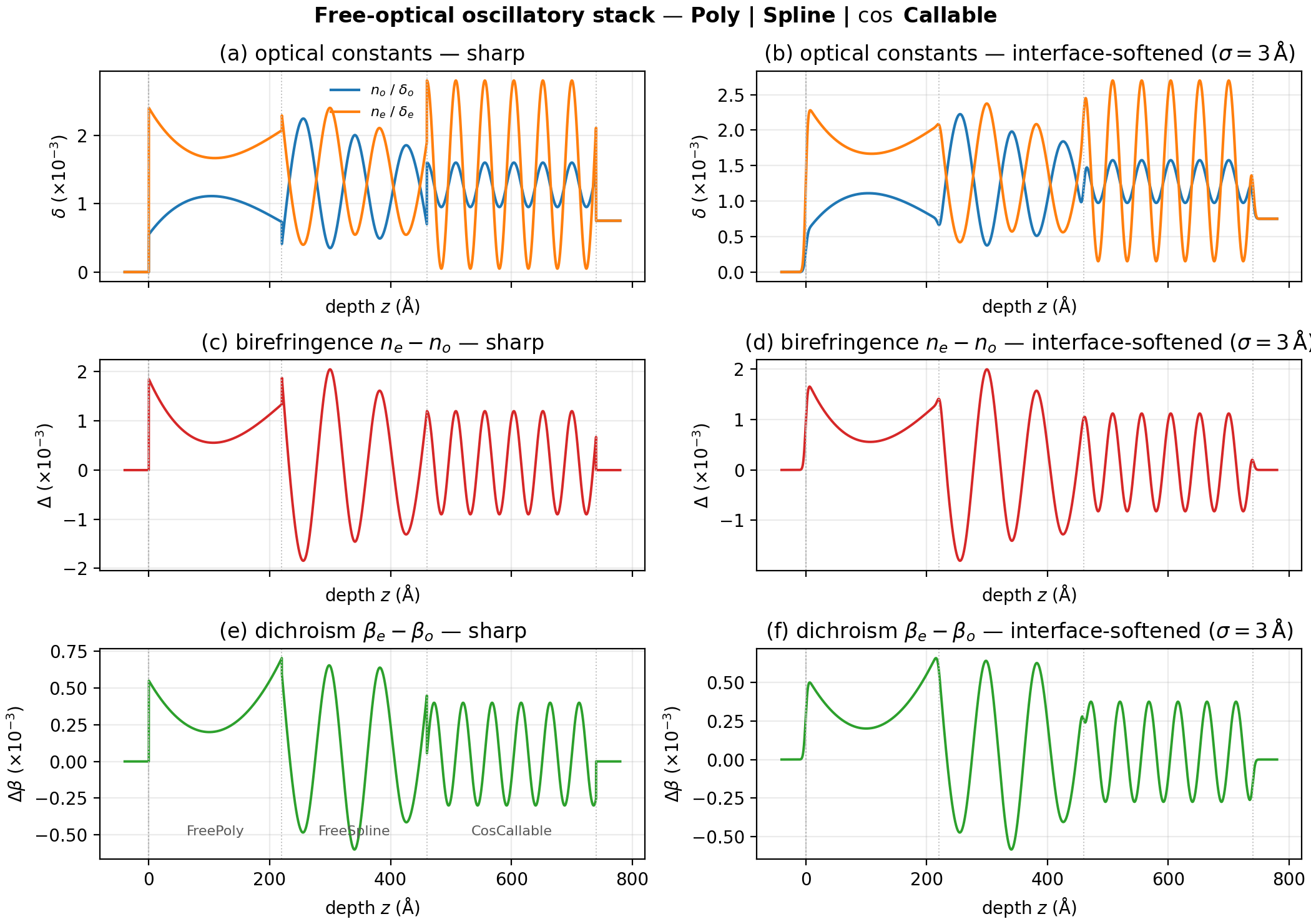

Depth figure shows \(\delta\), birefringence, and dichroism with mild interface
softening (not a midpoint staircase).
import numpy as np
from numpy.typing import NDArray
from refnx.analysis import Parameter
free_poly = DepthProfile(
material=mat,
thickness=220.0,
delta_o=Polynomial(coeffs=[0.55e-3, 1.2e-5, -7.5e-8, 1.1e-10]),
delta_e=Polynomial(coeffs=[2.40e-3, -1.5e-5, 9.0e-8, -1.3e-10]),
beta_o=Polynomial(coeffs=[2.0e-4, 3.0e-6, -1.5e-8]),
beta_e=Polynomial(coeffs=[7.5e-4, -4.0e-6, 2.0e-8]),
)
knots = list(np.linspace(0.0, 240.0, 7))
free_spline = DepthProfile(
material=mat,
thickness=240.0,
delta_o=Spline(
knots=knots,
values=[0.40e-3, 2.20e-3, 0.35e-3, 2.00e-3, 0.50e-3, 1.80e-3, 0.70e-3],
),
delta_e=Spline(
knots=knots,
values=[2.30e-3, 0.45e-3, 2.40e-3, 0.55e-3, 2.10e-3, 0.60e-3, 1.90e-3],
),
beta_o=Spline(
knots=knots,
values=[1e-4, 6e-4, 1.5e-4, 7e-4, 1.2e-4, 5.5e-4, 2e-4],
),
beta_e=Spline(
knots=knots,
values=[7e-4, 1.5e-4, 8e-4, 1e-4, 7.5e-4, 1.8e-4, 6.5e-4],
),
)
period = Parameter(48.0, name="period")
def free_delta_o(
z: NDArray[np.float64], *, period: float, thickness: float
) -> NDArray[np.float64]:
c = np.cos(2 * np.pi * z / period)
mid = 1.35e-3 + 0.85e-3 * c
biref = 0.15e-3 + 1.05e-3 * c
return mid - 0.5 * biref
def free_delta_e(
z: NDArray[np.float64], *, period: float, thickness: float
) -> NDArray[np.float64]:
c = np.cos(2 * np.pi * z / period)
mid = 1.35e-3 + 0.85e-3 * c
biref = 0.15e-3 + 1.05e-3 * c
return mid + 0.5 * biref
def free_beta_o(
z: NDArray[np.float64], *, period: float, thickness: float
) -> NDArray[np.float64]:
s = np.sin(2 * np.pi * z / period)
b_mid = 4.5e-4 + 2.5e-4 * s
dich = 0.5e-4 + 3.5e-4 * s
return np.clip(b_mid - 0.5 * dich, 5e-5, None)
def free_beta_e(
z: NDArray[np.float64], *, period: float, thickness: float
) -> NDArray[np.float64]:
s = np.sin(2 * np.pi * z / period)
b_mid = 4.5e-4 + 2.5e-4 * s
dich = 0.5e-4 + 3.5e-4 * s
return np.clip(b_mid + 0.5 * dich, 5e-5, None)
params = {"period": period}
cos_callable = DepthProfile(
material=mat,
thickness=280.0,
delta_o=CallableField(free_delta_o, params=params),
delta_e=CallableField(free_delta_e, params=params),
beta_o=CallableField(free_beta_o, params=params),
beta_e=CallableField(free_beta_e, params=params),
)
stack = vac | free_poly | free_spline | cos_callable | si
model = ReflectModel(stack, energies=[284.4], parallel=False)
Kitchen-sink stack¶

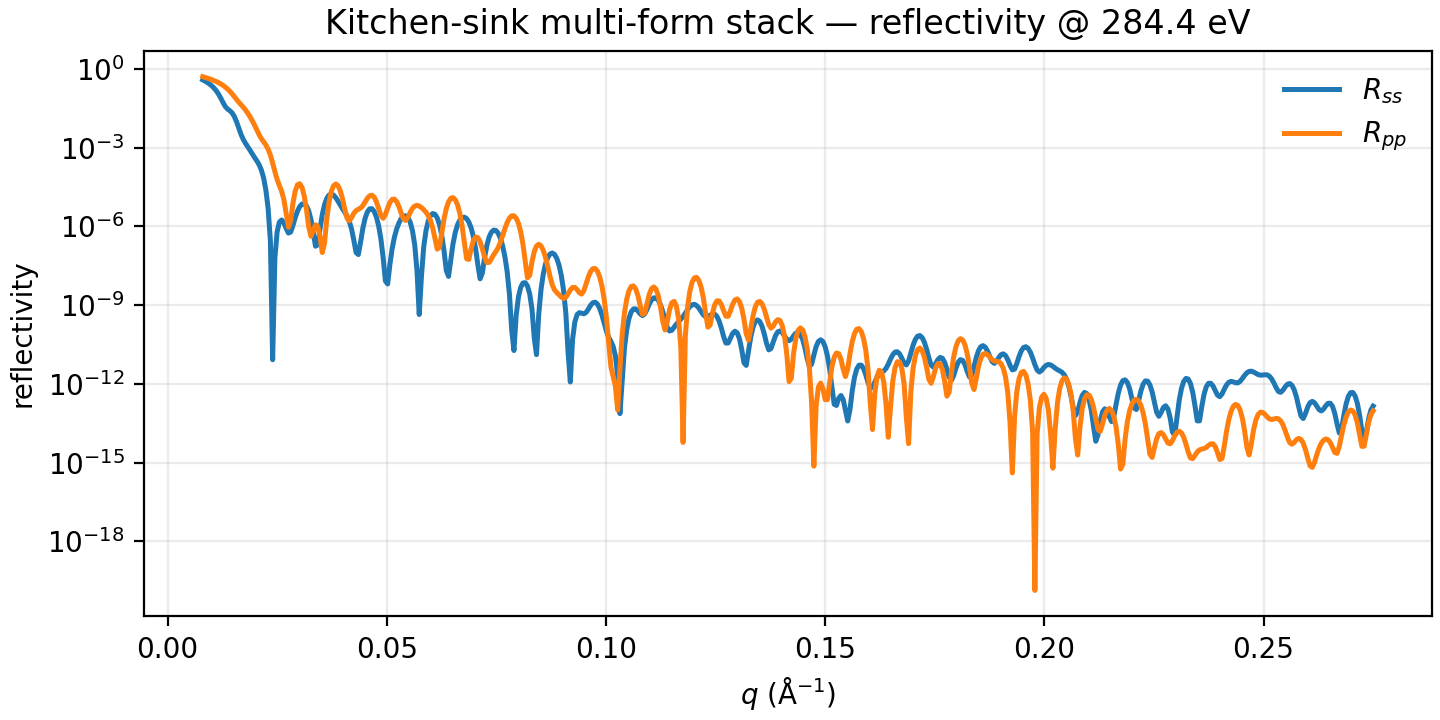

Builder: case_kitchen_sink
Nine segments under |: Diffusion, SecondOrder (orientation + composition),
homogeneous Mix, a wiggly volfrac Spline, a mid-bump volfrac Polynomial,
free-optical Spline, free-optical Polynomial, and a user

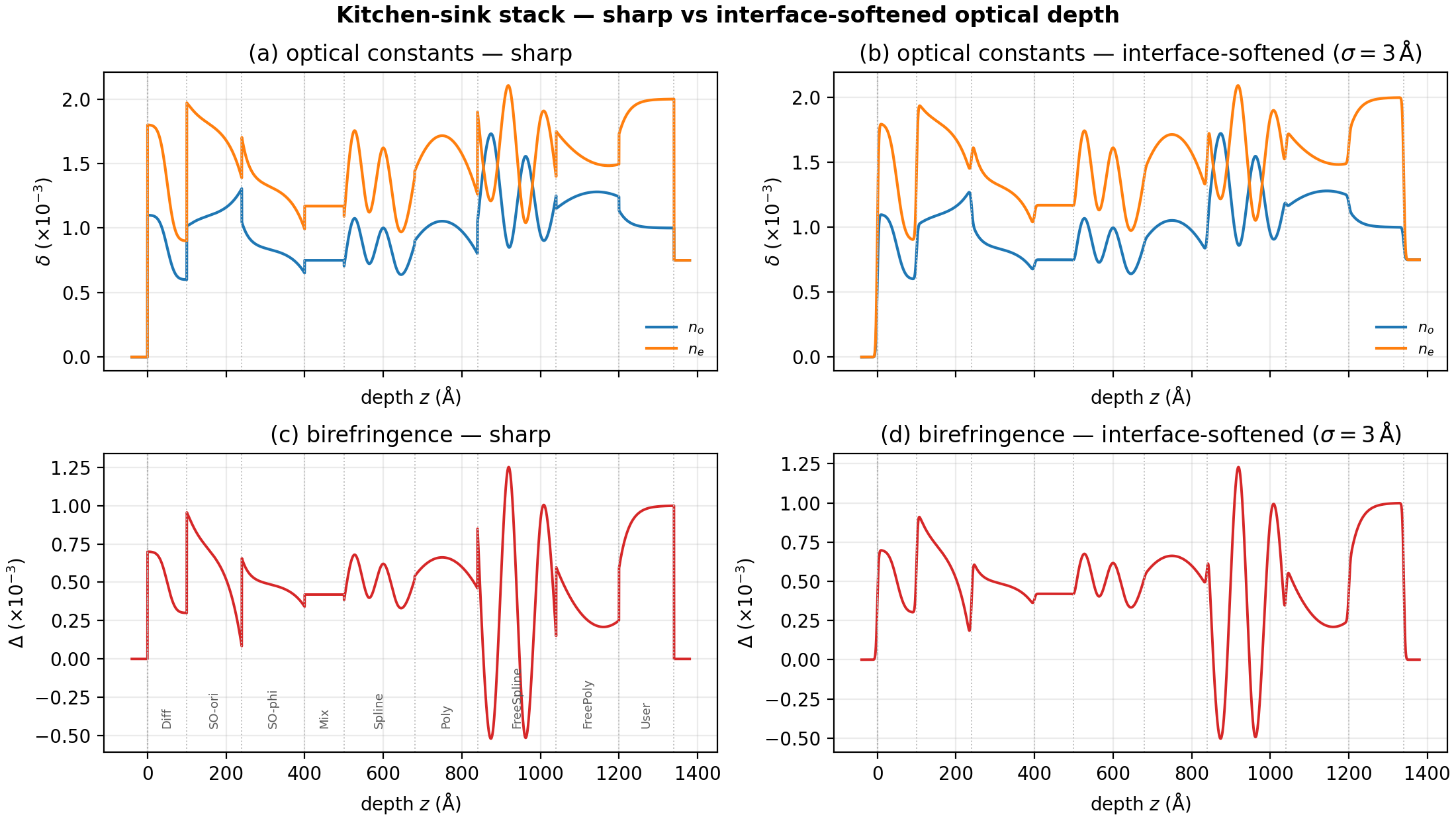

CallableField. Depth figure labels mark each segment.
The right column is mild Gaussian interface softening (\(\sigma\approx 3\,\mathrm{\AA}\)) of the continuous sharp profile — not a per-slab midpoint staircase — so spline / poly structure inside layers stays visible.
import numpy as np
from numpy.typing import NDArray
from refnx.analysis import Parameter
diffusion_layer = DepthProfile(
material=Mix([mat_a, mat_b], rule="linear"),
thickness=100.0,
roughness=1.0,
phi=Diffusion(thickness=100.0, left=1.0, right=0.0, length=22.0, kind="couple"),
)
second_order_orientation = DepthProfile(
material=mat,
thickness=140.0,
gamma=SecondOrderTransition(
thickness=140.0, bulk=0.4, top=0.15, bottom=0.9, tau_top=24.0, tau_bottom=45.0
),
)
second_order_composition = DepthProfile(
material=Mix([mat_a, mat_b], rule="linear"),
thickness=160.0,
phi=SecondOrderTransition(
thickness=160.0, bulk=0.5, top=0.9, bottom=0.1, tau_top=20.0, tau_bottom=40.0
),
)
mixed_slab = Mix([mat_a, mat_b], fractions=[0.3, 0.7], rule="linear")(100.0, 2.0)
t_spl = 180.0
volfrac_spline = DepthProfile(
material=Mix([mat_a, mat_b], rule="linear"),
thickness=t_spl,
phi=Spline(
knots=[0.0, 0.15 * t_spl, 0.35 * t_spl, 0.55 * t_spl, 0.75 * t_spl, t_spl],
values=[0.20, 0.95, 0.25, 0.80, 0.15, 0.55],
),
)
t_poly = 160.0
volfrac_polynomial = DepthProfile(
material=Mix([mat_a, mat_b], rule="linear"),
thickness=t_poly,
phi=Polynomial(coeffs=[0.6, 1.4 / t_poly, -1.6 / t_poly**2]),
)
t_fs = 200.0
free_optical_spline = DepthProfile(
material=mat,
thickness=t_fs,
delta_o=Spline(
knots=[0.0, 0.2 * t_fs, 0.4 * t_fs, 0.6 * t_fs, 0.8 * t_fs, t_fs],
values=[1.05e-3, 1.70e-3, 0.85e-3, 1.55e-3, 0.95e-3, 1.25e-3],
),
delta_e=Spline(
knots=[0.0, 0.2 * t_fs, 0.4 * t_fs, 0.6 * t_fs, 0.8 * t_fs, t_fs],
values=[1.90e-3, 1.25e-3, 2.10e-3, 1.05e-3, 1.85e-3, 1.40e-3],
),
beta_o=4e-4,
beta_e=6e-4,
)
t_fp = 160.0
free_optical_polynomial = DepthProfile(
material=mat,
thickness=t_fp,
delta_o=Polynomial(coeffs=[1.15e-3, 2.5e-6, -1.2e-8]),
delta_e=Polynomial(coeffs=[1.75e-3, -4e-6, 1.5e-8]),
beta_o=4e-4,
beta_e=6e-4,
)
def my_gamma(
z: NDArray[np.float64], *, g0: float, lam: float, thickness: float
) -> NDArray[np.float64]:
return g0 * np.exp(-z / lam)
user_defined_field = DepthProfile(
material=mat,
thickness=140.0,
gamma=CallableField(
my_gamma,
params={
"g0": Parameter(0.55, name="g0"),
"lam": Parameter(45.0, name="lam"),
},
),
)
structure = (
vac
| diffusion_layer
| second_order_orientation
| second_order_composition
| mixed_slab
| volfrac_spline
| volfrac_polynomial
| free_optical_spline
| free_optical_polynomial
| user_defined_field
| si
)
model = ReflectModel(structure, energies=[284.4], parallel=False)
